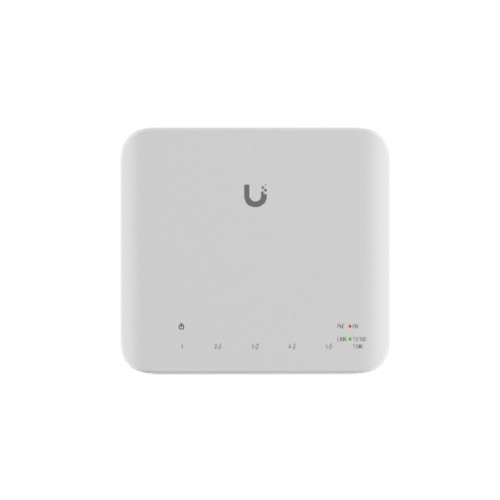

Ubiquiti USW-Flex (46W) Switch
Ubiquiti USW-Flex (46W) Switch
New

Ubiquiti USW-Flex (46W) Switch

   0 reviews
Product Code:
Availability:
Ubiquiti USW-Flex (46W)
Out Of Stock
Flexible 5-port, Layer 2 PoE switch for indoor and outdoor use, that can be powered with PoE++.
#1: (4) GbE PoE+ ports
#2: (1) GbE PoE++ input port for power
— 46W PoE availability PoE++ input
— 20W PoE availability PoE+ input
— 8W PoE availability PoE input
#3: Indoor/Outdoor
Mechanical
Dimensions 122.5 x 107.1 x 28 mm (4.8 x 4.2 x 1.1")
Hardware
Management interface Ethernet In-Band
Networking interface         (5) GbE RJ45 ports
PoE interface (4) PoE+ (Pins 1, 2+; 3, 6-)
Total non-blocking throughput         5 Gbps
Switching capacity 10 Gbps
Power method PoE++
Power supply PoE/PoE+ (Pins 1, 2+; 3, 6-)
PoE++ (Pins 1, 2+; 3, 6- and 4, 5+; 7, 8-)
50V/60W PoE adapter (Not included)
Supported voltage range PoE: 44—57V DC
PoE+/PoE++: 50—57V DC
Max. power consumption 5W (Excluding PoE output)
Total available PoE 46W
When powered with a PoE++ switch or a 60W PoE adapter (Sold separately).
Max. PoE wattage per port by PSE          25W
ESD/EMP protection Air/contact: + 16kV
Button Factory reset
Ambient operating temperature 46W PoE output: -40 to 55 C (-40 to 131 F)
25W PoE output: -40 to 65 C (-40 to 149 F)
Ambient operating humidity 5 to 95% noncondensing
Certifications CE, FCC, IC
Switching Features
Layer 2 features          Port isolation
Port mirroring
Multicast / broadcast rate limiting
Flow control
Jumbo frames
Egress rate limit
LEDs
System Status
Ethernet PoE
Speed/link/activity
PoE Link/activity
Application Requirements
UniFi Network Version 5.10.3 and later
