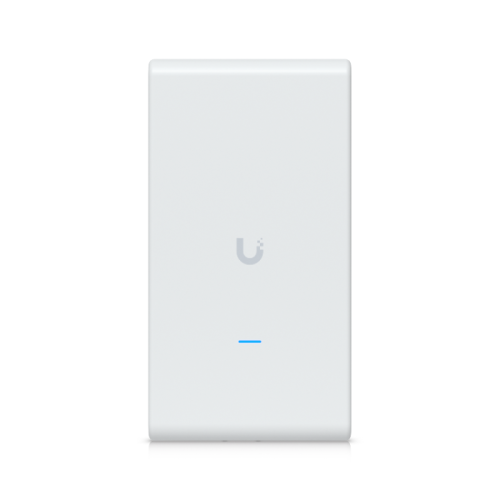

Ubiquiti U6-Mesh-Pro Indoor/outdoor WiFi 6 Access Point

0 reviews

Product Code:
Availability:

Ubiquiti U6-Mesh-Pro
Out Of Stock

Indoor/outdoor WiFi 6 AP with 4 spatial streams, an integrated super antenna, and a gigabit passthrough port.

#1: WiFi 6

#2: 4 spatial streams

#3: 185 m (2,000 ft) coverage with the integrated omnidirectional super antenna

#4: 350+ connected devices

#5: Powered using PoE

#6: GbE uplink with (1) GbE passthrough port

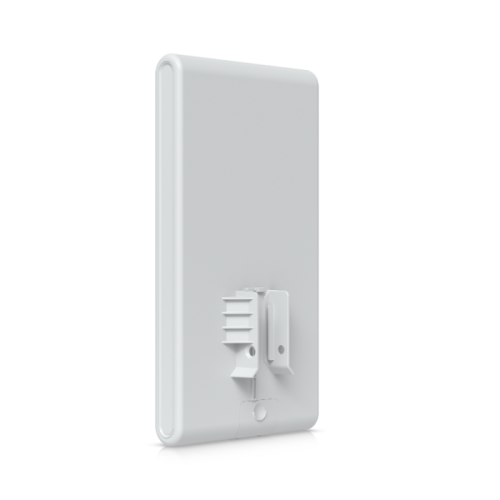

#7: Versatile wall and pole mounting

#8: Weatherproof (outdoor exposed)

Specifications

Dimensions 343.2 x 181.2 x 60.2 mm (13.5 x 7.1 x 2.4")

Weight 819 g (1.8 lb)

Enclosure material UV-stabilized polycarbonate

Mount material Aluminum alloy, steel

Pole mount diameter 1~2.5" on pipe outer diameter

Weatherproofing IPX6

Hardware

Networking interface (2) GbE RJ45 ports

Management interface Ethernet

WiFi

Power method PoE

Power supply UniFi PoE switch

48V, 0.5A PoE adapter (Included)

Supported voltage range 42.5—57V DC

Max. power consumption 9W

Max. TX power

2.4 GHz 22 dBm

5 GHz 27 dBm

6 GHz -

MIMO

2.4 GHz 2 x 2 (DL/UL MU MIMO)

5 GHz 2 x 2 (DL/UL MU-MIMO)

6 GHz –

Throughput rate

2.4 GHz 573.5 Mbps

5 GHz 2.4 Gbps

6 GHz –

Antenna gain

2.4 GHz 8 dBi

5 GHz 8 dBi

6 GHz –

LEDs White/blue

Button Factory reset

Mounting Wall, pole (Included)

Ambient operating temperature -30 to 60° C (-22 to 140° F)

Ambient operating humidity 5 to 95% noncondensing

Certifications CE, FCC, IC

Software

WiFi standards 802.11a/b/g/n/ac/ax

Wireless security WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3)

BSSID 8 per radio

VLAN 802.1Q

Advanced QoS Per-user rate limiting

Guest traffic isolation Supported

Concurrent clients 350+

Supported Data Rates

802.11a 6, 9, 12, 18, 24, 36, 48, 54 Mbps

802.11b 1, 2, 5.5, 11 Mbps

802.11g 6, 9, 12, 18, 24, 36, 48, 54 Mbps

802.11n (WiFi 4) 6.5 Mbps to 300 Mbps (MCS0 - MCS15 , HT 20/40)

802.11ac (WiFi 5) 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)

802.11ax (WiFi 6) 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)

Application Requirements

UniFi Network Version 8.1.127 and later
