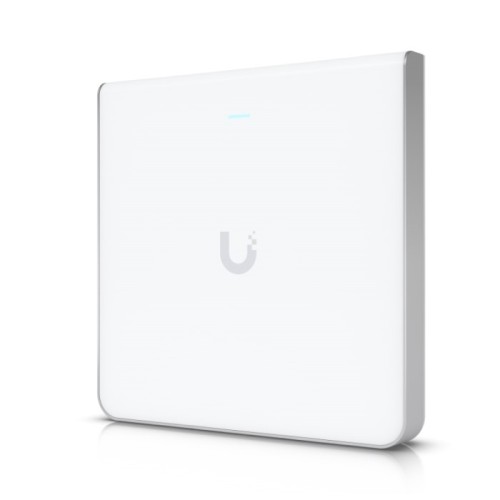

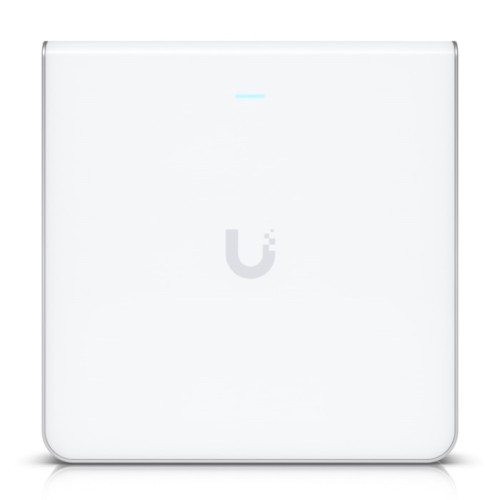

Ubiquiti U6-Enterprise-IW In-Wall Access Point
Ubiquiti U6-Enterprise-IW In-Wall Access Point

Ubiquiti U6-Enterprise-IW In-Wall Access Point

   0 reviews
Product Code:
Availability:
Ubiquiti U6-Enterprise-IW
Out Of Stock
#1: 115 m (1,250 ft) coverage
#2: 600+ connected devices
#3: WiFi6E (4x4 MIMO)
#4: Powered using PoE+/PoE++

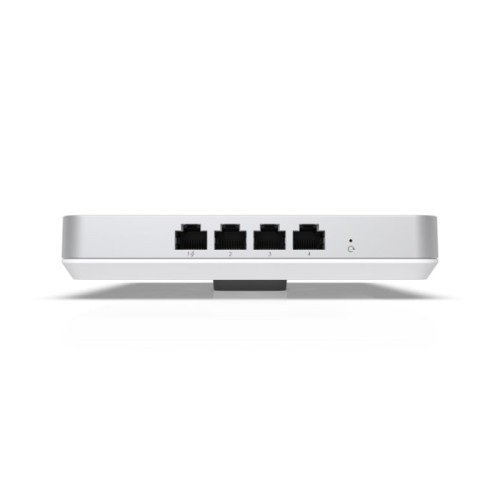

#5: (4) GbE ports with (1) PoE output
#6: 2.5GbE uplink
Technical Specifications
Mechanical
Dimensions                                                                                         159.7 x 156.7 x 33.8 mm (6.3 x 6.2 x 1.3")
Weight                                                                                                 884 g (1.95 lb)
Enclosure materials                                                                         Polycarbonate, aluminum
Mount material                                                                                 Aluminum
Hardware
Networking interface                                                                        (1) Data in: 2.5GbE RJ45 port
                                                                                                               (4) Data out: GbE RJ45 ports
Management interface                                                                Ethernet
                                                                                                               Bluetooth
PoE interface                                                                                (1) PoE+ input
                                                                                                               (1) PoE output
Power method                                                                                PoE+
                                                                                                               PoE++ (required for PoE output)
Power supply                                                                                UniFi PoE switch
Max. power consumption                                                                Excluding PoE output: 21W
Max. PoE wattage per port by PSE                                                15.4W
Supported voltage range                                                                44—57V DC
                                                                                                               Max. TX power
                                                                                                               2.4 GHz
                                                                                                               5-7 GHz
                                                                                                               22 dBm
                                                                                                               26 dBm
MIMO
                                                                                                               2.4 GHz
                                                                                                               5 GHz
                                                                                                               6 GHz
                                                                                                               2 x 2 (UL MU-MIMO)
                                                                                                               4 x 4 (DL/UL MU-MIMO)
                                                                                                               4 x 4 (DL/UL MU-MIMO)
Throughput rate
                                                                                                               2.4 GHz
                                                                                                               5 GHz
                                                                                                               6 GHz
                                                                                                               573.5 Mbps
                                                                                                               4.8 Gbps
                                                                                                               4.8 Gbps
Antenna gain
                                                                                                               2.4 GHz
                                                                                                               5 GHz
                                                                                                               6 GHz
                                                                                                               4 dBi
                                                                                                               5.8 dBi
                                                                                                               5.8 dBi
LED                                                                                                        White/blue
Button                                                                                               Factory reset
Operating temperature                                                                -30 to 60° C (-22 to 140° F)
Operating humidity                                                                        5 to 95% noncondensing
Certifications                                                                                CE, FCC, IC
Software
WiFi standards                                                                                802.11a/b/g
                                                                                                               WiFi 4/WiFi 5/WiFi 6/WiFi 6E
Wireless security protocols                                                        WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3)
BSSID                                                                                                8 per radio
VLAN                                                                                                802.1Q
Advanced QoS                                                                                Per-user rate limiting
Guest traffic isolation                                                                        Supported
Concurrent client support 600+
Zero-wait DFS                                                                                 Yes
Supported Data Rates
802.11a 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b 1, 2, 5.5, 11 Mbps
802.11g 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n (WiFi 4) 6.5 Mbps to 600 Mbps (MCS0 - MCS31 , HT 20/40)
802.11ac (WiFi 5) 6.5 Mbps to 3.4 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160)
802.11ax (WiFi 6/6E) 7.3 Mbps to 4.8 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160)
Application Requirements
UniFi Network Version 7.2.85 and later
