Ubiquiti UACC-DoorCloser Door Closer
New
Ubiquiti UACC-DoorCloser Door Closer
Product Code:
Availability:
Availability:
Ubiquiti UACC-DoorCloser
Out Of Stock
Out Of Stock

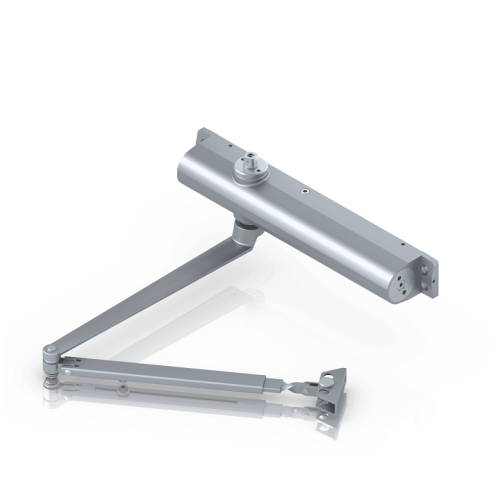

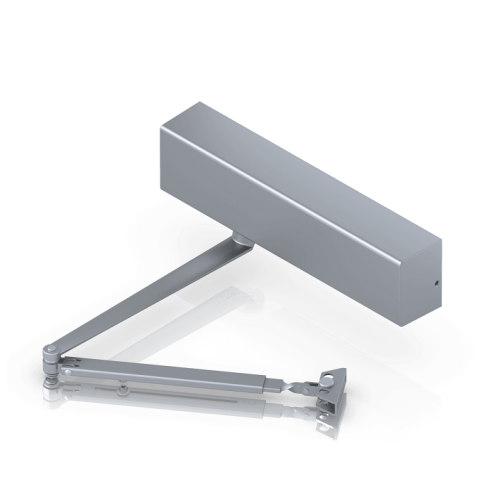

A mechanical door closer that ensures controlled closure for safety and convenience.
Mechanical
Dimensions Lock body: 328 x 88.6 x 53.5 mm (12.9 x 3.5 x 2.1")
Weight 3.3 kg (7.3 lb)
Enclosure material Lock body: aluminum alloy, carbon steel, hot-rolled steel
Deco cover: acrylonitrile butadiene styrene
Max. door opening angle 180
Hardware
Power size 1-6
Application range Standard door mount on the pull side
Top jamb mount on the push side
Parallel arm bracket mount on the push side (Size 1-5 only)
Standard door/Top jamb mount (Max. door size) 30”(762 mm): Size 1 Interior / Size 3 Exterior
36”(914 mm): Size 2 Interior / Size 4 Exterior
42”(1067 mm): Size 3 Interior / Size 5 Exterior
48”(1219 mm): Size 4 Interior / Size 6 Exterior
Parallel arm bracket mount(Max. door size) 30”(762 mm): Size 1 Interior / Size 3 Exterior
36”(914 mm): Size 2 Interior / Size 4 Exterior
42”(1067 mm): Size 3 Interior / Size 5 Exterior
48”(1219 mm): Size 4 Interior / —
Certifications UL 228, UL 10C, ANSI/BHMA A156.4-(2019) Grade1, ANSI A117.1 ADA
