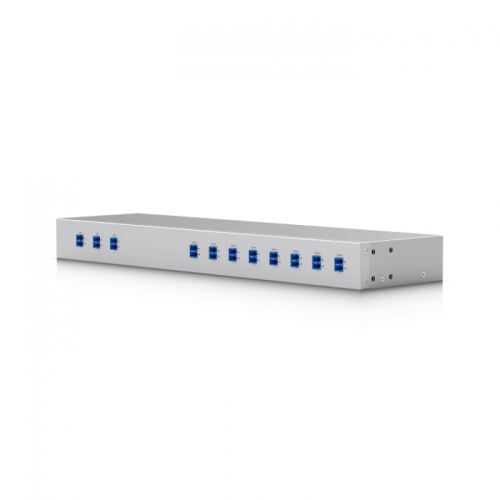

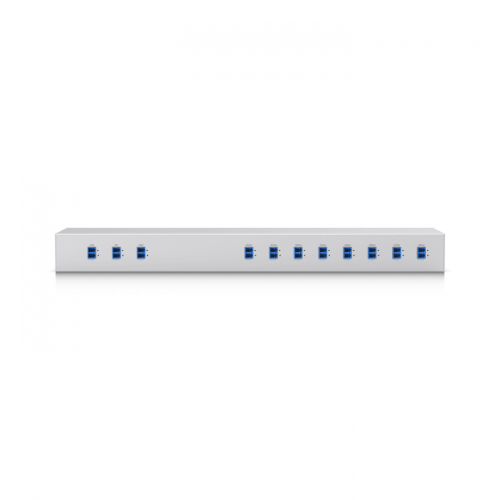

Ubiquiti UACC-CWDM-8 CWDM Mux Demux 8
Ubiquiti UACC-CWDM-8 CWDM Mux Demux 8
Product Code:
Availability:
Availability:
Ubiquiti UACC-CWDM-8
In Stock
In Stock
Rack-mountable 8-channel 1450 to 1590 nm CWDM mux demux designed to increase capacity of existing fiber infrastructure.
#1: (8) 1450 to1590 nm channel ports
#2: (1) Duplex LC UPC communication port for linking to another CWDM Mux Demux 8 with a pair of single-mode fiber cables
#3: (1) Duplex LC UPC monitor port for seamless observation with a power meter or optical spectrum analyzer
#4: (1) Duplex LC UPC expansion port for linking to CWDM Mux Demux 4 to add more channels
#5: Compatibility: USW-Aggregation, USW-Pro-Aggregation
Mechanical
Dimensions 442 x 120 x 43.7 mm ( 17.4 x 4.7 x 1.7")
Weight 1.4 kg (3.2 lb)
Enclosure material Metal
Hardware
Connector type (1) COM (LC/UPC)
(1) MON (LC/UPC)
(1) EXP (LC/UPC)
(1) 1450 to 1590 nm (LC/UPC)
Pigtail and connector type COM: 0.9 mm black LC/UPC
Other ports: 0.9 mm white LC/UPC
Fiber type SMF-28e
Fiber length >0.5 to 1 m
Channel count 4 CH Mux/Demux
Channel center wavelength 1450/1470/1490/1510/1530/1550/1570/1590 nm
Min. channel passband +6.5 nm
Max. insertion loss <1.5 dB
Isolation Adjacent channel: Max. 30 dB
Non-Adjacent channel: Min. 40 dB
Max. passband ripple 0.3 dB
Max. Polarization Dependent Loss 0.1 dB
Min. directivity 55 dB
Min. return loss 50 dB
Max. polarization mode dispersion 0.1 ps
Max. power handling 500 mW
Storage temperature -40 to 90 C (-40 to 194 F)
Ambient operating temperature -30 to 75 C (-22 to 167 F)
