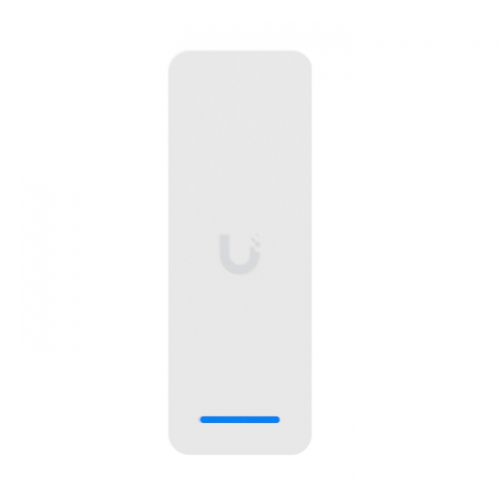

Ubiquiti UA-Ultra Access Ultra
Ubiquiti UA-Ultra Access Ultra
Product Code:
Availability:
Availability:
Ubiquiti UA-Ultra
Out Of Stock
Out Of Stock
An access reader with a built-in hub for complete, single-door entry control from one device.
#1: (1) Lock terminal (12V DC, 1A)
#2: (1) Exit request input
#3: Unlock using an NFC card or UniFi Identity mobile app
#4: Connect and power using PoE+
#5: IP55 weather resistance (-30 to 40 C)
Mechanical
Dimensions 126 x 45 x 37.45 mm (4.9 x 1.8 x 4.5")
Enclosure material Polycarbonate, aluminum alloy
Mounting Wall mount, gang box mount
Weatherproofing IP55\Hardware
Networking interface 10/100 MbE RJ45 port
Connectivity Ethernet
BLE 4.2
Digital input (1) Exit request
Lock terminals (1) 12V DC, 1A
Power method PoE+
Max. power consumption 18W
ESD/EMP protection Air: +8kV, contact: + 4kV
LEDs R/G/B/W
Button (1) Factory reset
Tamper switch Yes
Speaker Buzzer
NFC frequency 13.56 Mhz
NFC read range < 50 mm
NFC standards ISO 14443A, 14443B, 15693
NFC technology NFC Tag 1,2,3,4,5
MIFARE Classic
MIFARE Plus
Mifare Ultralight
MIFARE DESFire
Ambient operating temperature -30 to 40 C (-22 to 104 F)
Ambient operating humidity 5 to 90% noncondensing
Certifications CE, FCC, IC
