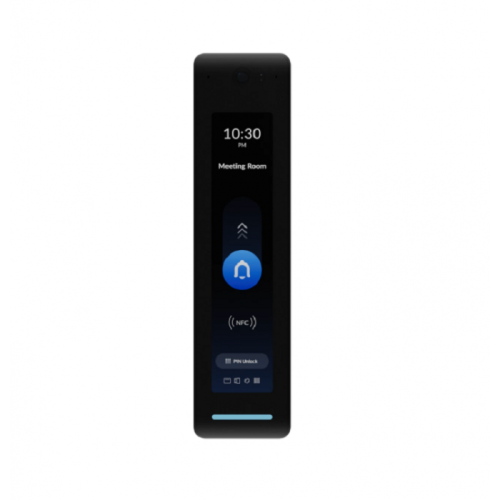

Ubiquiti UA-G3-Pro-B G3 Reader Pro - Black
Ubiquiti UA-G3-Pro-B G3 Reader Pro - Black
Product Code:
Availability:
Availability:
Ubiquiti UA-G3-Pro-B
Out Of Stock
Out Of Stock
Third-generation, indoor/outdoor NFC reader and intercom with Apple Touch Pass support.
#1: Unlock using the NFC card, PIN, UniFi Identity mobile app, face unlock and Touch Pass
#2: Doorbell for unlock with video of visitor and two-way intercom
#3: Video works at ADA-compliant mounting height
#4: IP55-rated weather resistance (-10 to 45 C)
#5: Connects to UniFi Access Hub using PoE
| Mechanical | |
|---|---|
| Dimensions | 160 x 40.4 x 40.55 mm (6.3 x 1.59 x 1.6") |
| Weight | 136 g (4.8 oz) |
| Enclosure material | Polycarbonate, glass |
| Mount material | Aluminum alloy |
| Mounting | Wall mount (Included) Gangbox mount (Included) Angle mount (Optional) Junction box (Optional) |
| Weatherproofing | IP55 |
| Hardware | |
| Networking interface | (1) GbE RJ45 port |
| Connectivity | BLE 4.2 NFC |
| Power method | PoE UL 294 Power-limited Class 2 PSU UL 60950-1/62368-1 LPS/PS2 PSU |
| Supported voltage range | 48V DC |
| Max. power consumption | 6W |
| ESD/EMP protection | Air: ±15kV, contact: ±8kV |
| Sensor | Proximity sensor |
| Camera view angle | H: 96.67°, V: 123.15°, D: 153.11° |
| Microphone | Yes |
| Speaker | (1) 4 ohm, 1.5W |
| LEDs | R/G/B/W/Amber (Learn more) |
| Button | (1) Factory-reset |
| NFC frequency | 13.56 MHz |
| NFC read range | < 30 mm |
| NFC technology | ISO/IEC 14443A / 14443B / 15693 / 18092 (Ecma 340) MIFARE Classic / MIFARE DESFIRE Sony FeliCa™ (ID only) NFC Forum tags T1T, T2T, T3T, T4T and T5T ECP 2.0 |
| Operating environment | Outdoor use |
| Ambient operating temperature | Device: -30 to 45° C (-22 to 113° F) Display:* -10 to 45° C (14 to 113° F) *The display will turn off when the ambient temperature is above/below the display operation temperature, but other functions will remain functional. (Effective after firmware v1.3.28) |
| Ambient operating humidity | 5 to 90% noncondensing |
| Software information | The software version of a product can be checked at https://unifi.ui.com |
| UL 294 level | Destructive attack: Level I Line security: Level I Endurance: Level I Standby power: Level I |
| UL 294 statement | Compliance with IEEE 802.3 specifications was not verified as part of UL 294. The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits. |
| PoE cabling requirements | Cable 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site. The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm 2 ) for patch cords; 24 AWG (0.21 mm 2 ) for horizontal or riser cable. |
| CAN/ULC-60839-11-1 Grade | Grade assignment: I |
| Certifications | CE, FCC, IC, UL 294, CAN/ULC-60839-11-1 |
| Document number, and issue date and/or revision level | UA-G3-Pro-W/UA-G3-Pro-B, V01 |
| Software | |
| Management application | UniFi Access: Version 3.0.15 and later |
