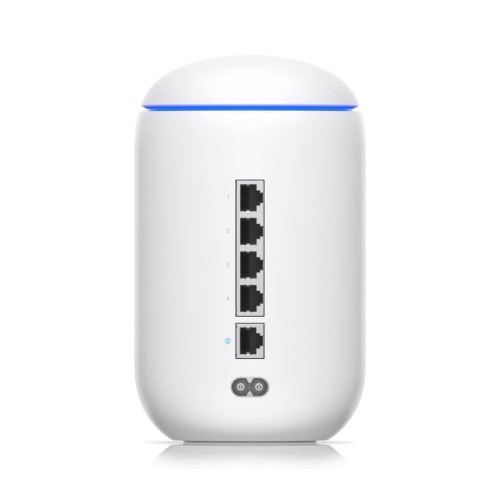

Ubiquiti UDM Dream Machine Call For Best Price in Dubai, UAE, Oman, Iran, Africa
Ubiquiti UDM Dream Machine Call For Best Price in Dubai, UAE, Oman, Iran, Africa
Product Code:
Availability:
Availability:
Ubiquiti UDM
In Stock
In Stock
All-in-one UniFi Gateway and access point designed to support LAN and WiFi networks.
- Built-in WiFi 5 AP
- Includes UniFi Network for device management
- Full Gigabit routing
- (4) GbE RJ45 LAN ports
| Dimensions | Ø110 x 184.1 mm (Ø4.3 x 7.3") |
| Weight | 1.1 kg (2.3 lb) |
| Enclosure material | Polycarbonate |
| Hardware | |
|---|---|
| Processor | Quad-core Arm® Cortex® A57 at 1.7 GHz |
| System memory | 2 GB DDR RAM |
| Management interface | Ethernet Bluetooth |
| Networking interface | LAN: (4) GbE RJ45 ports WAN: (1) GbE RJ45 port |
| Power method | Universal AC input, 100—240V AC, 0.6A Max., 50/60 Hz |
| Power supply | AC/DC, internal, 50W |
| Supported voltage range | 100—240V AC |
| Max. power consumption | 26W |
| Max. TX power 2.4 GHz 5 GHz | 23 dBm 26 dBm |
| MIMO 2.4 GHz 5 GHz | 2 x 2 4 x 4 |
| Throughput rate 2.4 GHz 5 GHz | 300 Mbps 1.7 Gbps |
| Antenna gain 2.4 GHz 5 GHz | 3 dBi 4.5 dBi |
| Antenna | (1) Internal, dual-band, quad-polarity antenna |
| Button | Factory reset |
| LEDs | White/blue |
| Ambient operating temperature | -10 to 45° C (14 to 113° F) |
| Ambient operating humidity | 5 to 95% Noncondensing |
| Certifications | CE, FCC, IC |
| Gateway Features | |
| Performance | WiFi QoS with UniFi APs Application, domain, and country-based QoS Application and device type identification Additional internet failover with LTE Backup Internet quality and outage reporting |
| Next-generation security | Application-aware firewall rules Signature-based IPS/IDS threat detection Content, country, domain, and ad filtering VLAN/subnet-based traffic segmentation Full stateful firewall |
| Advanced networking | License-free SD-WAN WireGuard, L2TP and OpenVPN server OpenVPN client OpenVPN and IPsec site-to-site VPN One-click Teleport and Identity VPN Policy-based WAN and VPN routing DHCP relay Customizable DHCP server IGMP proxy IPv6 ISP support |
| Software | |
| WiFi standards | 802.11a/b/g/n/ac |
| Wireless security | WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES), 802.11w/PMF |
| BSSID | Up to 8 per radio |
| VLAN | 802.1Q |
| Advanced QoS | Per-user rate limiting |
| Guest traffic isolation | Supported |
| Concurrent clients | 100+ |
| Supported Data Rates | |
| 802.11a | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11b | 1, 2, 5.5, 11 Mbps |
| 802.11g | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11n (WiFi 4) | 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40) |
| 802.11ac (WiFi 5) | 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160) |
