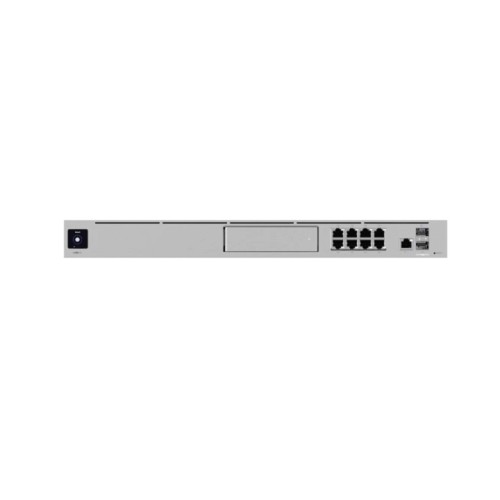

Ubiquiti UDM-SE (180W) Dream Machine Special Edition Cloud Gateway
Ubiquiti UDM-SE (180W) Dream Machine Special Edition Cloud Gateway
Product Code:
Availability:
Availability:
Ubiquiti UDM-SE (180W)
Out Of Stock
Out Of Stock
10G Cloud Gateway with 100+ UniFi device / 1,000+ client support, 3.5 Gbps IPS routing, and built-in PoE switching.
#1: Includes full UniFi application suite for device management
#2: 3.5+ Gbps routing with IDS/IPS
#3: (1) 10G SFP+, (8) GbE RJ45 LAN ports including (2) PoE+, and (6) PoE
#4: (1) 10G SFP+, (1) 2.5 GbE RJ45 WAN ports
#5: (1) 3.5" NVR HDD bay
#6: Built-in 128 GB SSD for NVR detection recordings
#7: UniFi Power Backup ready
#8: 1.3" touchscreen
Mechanical
Dimensions 442.4 x 43.7 x 285.6 mm (17.4 x 1.7 x 11.2")
Enclosure material Aluminium CNC, SGCC steel
Mount material SGCC steel
Hardware
Processor Quad-core ARM Cortex-A57 at 1.7 GHz
System memory 4 GB DDR4
On-board storage 16 GB eMMC
Integrated 128 GB SSD
Management interface Ethernet
Bluetooth
Networking interface LAN:
(8) GbE RJ45 ports
(1) 10G SFP+ port
WAN:
(1) 2.5 GbE RJ45 port
(1) 10G SFP+ port
PoE interface (6) PoE (Pair A 1, 2+; 3, 6-)
(2) PoE+ (Pair A 1, 2+; 3, 6-)
IDS/IPS throughput 3.5 Gbps
Measured with iPerf3 on a DHCP network. Performance may be reduced with PPPoE depending on ISP implementation.
Power method (1) Universal AC input, 100—240V AC, 4.4A Max., 50/60 Hz
(1) USP-RPS DC input, 52V DC, 3.94A
Power supply AC/DC, internal, 240W
Supported voltage range 100—240V AC
Max. power consumption 50W (Excluding PoE output)
PoE budget 180W
Max. PoE wattage per port by PSE PoE: 15.4W
PoE+: 30W
Voltage range PoE mode PoE: 44—57V
PoE+: 50—57V
ESD/EMP protection Air: + 15kV, contact: + 8kV
LCM display (1) 1.3" touchscreen
Button Factory reset
Ambient operating temperature -10 to 40 C (14 to 104 F)
Ambient operating humidity 5 to 95% noncondensing
Certifications CE, FCC, IC
Gateway Features
Performance Redundant WAN with failover and load balancing
WiFi QoS with UniFi APs
Application, domain, and country-based QoS
Application and device type identification
Additional internet failover with LTE Backup
Internet quality and outage reporting
Next-generation security Application-aware firewall rules
Signature-based IPS/IDS threat detection
Content, country, domain, and ad filtering
VLAN/subnet-based traffic segmentation
Full stateful firewall
Advanced networking License-free SD-WAN
WireGuard, L2TP and OpenVPN server
OpenVPN client
OpenVPN and IPsec site-to-site VPN
One-click Teleport and Identity VPN
Policy-based WAN and VPN routing
DHCP relay
Customizable DHCP server
IGMP proxy
IPv6 ISP support
LEDs
Ethernet White: link/activity
SFP+ White: link/activity
HDD White: disk activity
Amber: disk error
RPS Blue: ready
