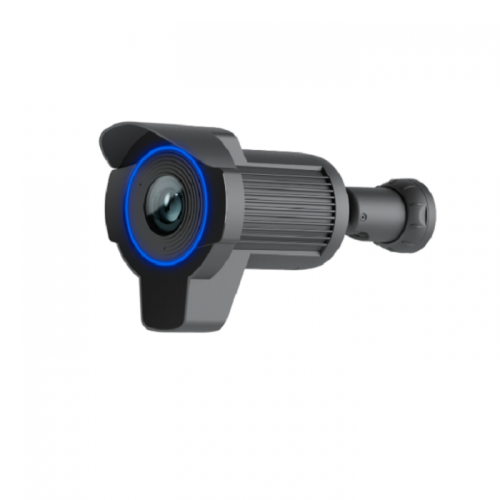

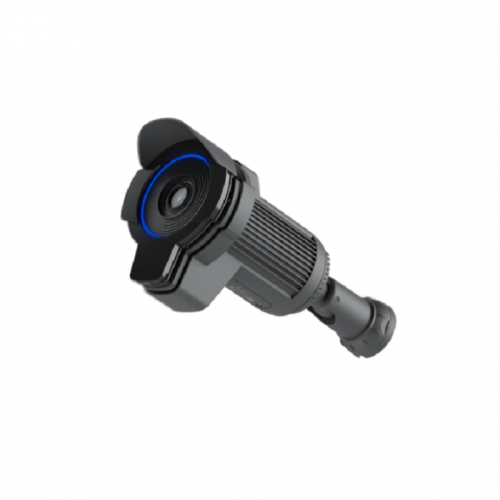

Ubiquiti UVC-AI-LPR-B AI LPR IP Camera

Product Code:
Availability:

Ubiquiti UVC-AI-LPR-B
Out Of Stock

Specialized 4K camera with 3x optical zoom and long-range IR night vision optimized for recognizing license plates on vehicles moving up to 90 km/h.

#1: 4K (8MP) video resolution

#2: 3x optical zoom

#3: 15 m (50 ft) IR capture distance

#4: Advanced LPR: high-speed detections at night

#5: Cover up to two lanes of traffic

#6: Record audio with an integrated microphones

#7: Weatherproof (outdoor exposed)

Mechanical

Dimensions 130 x 151.4 x 302.9 mm (5.1 x 6 x 11.9")

Enclosure material Aluminum alloy, polycarbonate

Weatherproofing IP66

Resistance IK04

Pole mount diameter 38–50 mm (1.5–2") on pipe outer diameter (Metal strap torque: 6Nm)

Cable jacket enclosure dimensions 20 x 70.6 mm (0.8 x 2.8")

Cable jacket enclosure material Thermoplastic elastomer, polycarbonate, silicone rubber

Cable length 30 cm (1 ft)

Cable diameter 4.5 mm (0.2")

Cable jacket material Thermoplastic elastomer

Cable connector type RJ45

Optics

Sensor 1/1.8" 8MP

Lens F 4.1–12.3 mm; ƒ/1.53–ƒ/3.3

View angle Wide: H 109.9°, V 60°, D 127.7°

Tele: H 35°, V 19.8°, D 40°

LPR night mode LPR optimization filter

IR capture distance 15 m (50 ft)

Video

Resolution 8MP 3840 x 2160 (16:9)

Max. frame rate 30 FPS

Image settings Color, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, NR by motion, masking, text overlay

System

Processor Quad-core Arm Cortex-A53 based chip

Networking interface GbE RJ45 port

Max. power consumption 25.5W

Power method PoE+

Supported voltage range 42.5–57V DC

LED R/G/B/W

Button Factory rese

Expansion slot Micro SD memory card

Requires a memory card with at least 64 GB of storage.

Mounting Wall, pole

Ambient operating temperature -20 to 50 C (-4 to 122 F)

Ambient operating humidity 10 to 90% noncondensing

Certifications FCC, IC, CE

Audio

Microphone Yes (Can be disabled)

Speaker No

Software

Web application UniFi Protect

Mobile app UniFi Protect iOS and Android
