Ubiquiti UDB-Pro Device Bridge Pro Access Point Call For Best Price in Dubai, UAE, Oman, Iran, Africa
Ubiquiti UDB-Pro Device Bridge Pro Access Point Call For Best Price in Dubai, UAE, Oman, Iran, Africa
Product Code:
Availability:
Availability:

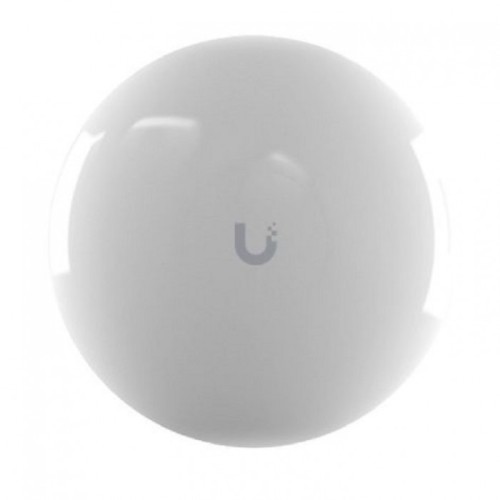

Ubiquiti UDB-Pro
Out Of Stock
Out Of Stock
5 GHz wireless bridge with PoE output that connects at 5+ km distances or seamlessly uplinks to UniFi WiFi.
#1: Link at 5+ km distances with a point-to-point connection to another Device Bridge Pro, or uplink seamlessly with UniFi WiFi Auto-Link
#2: (2) GbE ports with (1) PoE output for PoE devices
#3: Powered using PoE/PoE+
#4: Pole mounting
#5: Weatherproof (outdoor exposed)
#6: Sold as a single unit
Mechanical
Dimensions 189.5 x 64.3 mm (7.4 x 2.5")
Enclosure material UV-resistant polycarbonate
Mount material UV-stabilized polycarbonate, stainless steel
Pole mount diameter 20–53.1 mm (0.8–2.1") on pipe outer diameter
Wind loading 69 N at 200 km/h (15.5 lbf at 125 mph)
Weatherproofing IPX6
Hardware
Networking interface (2) GbE RJ45 ports
Management interface Ethernet
WiFi
PoE interface (1) PoE in (PoE output not used)
(1) Passive PoE output
Power method PoE
PoE+ (Required for PoE output)
Power supply UniFi PoE switch
48V, 0.32A PoE adapter (Included)
Supported volatage range 42.5–57V DC
Max. power consumption 9W
Max. TX power
2.4 GHz –
5 GHz 25 dBm
6 GHz –
Max. data rate
2.4 GHz –
5 GHz 867 Mbps (BW80)
6 GHz –
MIMO
2.4 GHz –
5 GHz 2 x 2
6 GHz –
Antenna gain
2.4 GHz –
5 GHz 19 dBi
6 GHz –
Antenna Internal
Range 5+ km
LEDs Power, Ethernet, (4) signal strength
Button Factory reset
Mounting Pole (Included)
Ambient operating temperature -40 to 60 C (-40 to 140 F)
Ambient operating humidity 5 to 95% noncondensing
Certifications CE, FCC, IC
Software
WiFi standards 802.11a/n/ac
Wireless security WPA2 AES (Always On)
Operating frequency U-NII-1 5150 - 5250 MHz
US/CA U-NII-2A 5250 - 5350 MHz
U-NII-2C 5470 - 5725 MHz
U-NII-3 5725 - 5850 MHz
Worldwide 5150 - 5875 MHz
Depends on regulatory region.
Channel bandwidth 20/40/80 MHz
Max. conducted TX power 25 dBm (Combined)
Modulation BPSK (½), QPSK (½), QPSK (¾), 16QAM (½), 16QAM (¾), 64QAM (2⁄3), 64QAM (¾),
64QAM (5⁄6), 256QAM (¾), 256QAM (5⁄6)
