Ubiquiti UDB Device Bridge Access Point Call For Best Price in Dubai, UAE, Oman, Iran, Africa
Ubiquiti UDB Device Bridge Access Point Call For Best Price in Dubai, UAE, Oman, Iran, Africa
Product Code:
Availability:
Availability:

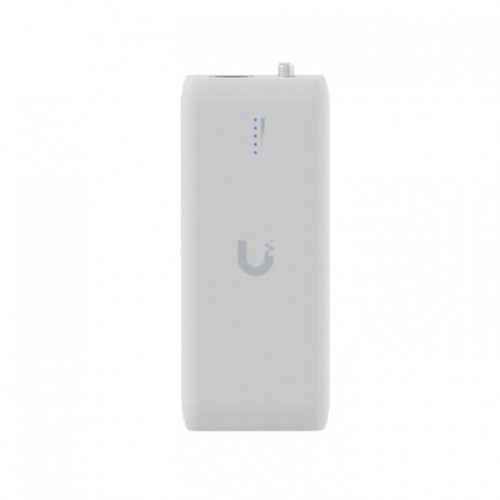

Ubiquiti UDB
Out Of Stock
Out Of Stock
Plug-and-play, wireless bridging PoE adapter with integrated UniFi WiFi Auto-Link.
#1: (1) GbE LAN port that provides up to 15W of PoE
#2: 5 GHz band with up to 867 Mbps throughput rate
#3: Compatible with UniFi Protect PoE cameras, Talk phones, and various IoT devices via an Ethernet connection
Mechanical
Dimensions 130 x 55 x 34 mm (5.1 x 2.2 x 1.3")
Mount material Polycarbonate
Hardware
Management interface WiFi
Networking interface (1) GbE RJ45 port
PoE interface (1) Passive PoE output
Button (1) Factory-reset
LED (4) Blue: signal
(1) White/blue: indicator
Power method 100—240V AC, 0.45A Max., 50/60 Hz
Max. power consumption AC input: 25W
Excluding PoE output: 10W
Max. PoE wattage per port 15W
Supported voltage range 100—240V AC
WiFi standards 802.11a/n/ac
Max. TX power
2.4 GHz –
5 GHz 21 dBm
6 GHz –
MIMO
2.4 GHz –
5 GHz 2 x 2
6 GHz –
Max. data rate
2.4 GHz –
5 GHz 866.7 Mbps (BW80)
6 GHz –
Antenna gain
2.4 GHz –
5 GHz Internal antenna : 5 dBi / External omni antenna : 4 dBi
6 GHz –
Antenna (1) Internal antenna
(1) RP-SMA connector for external omni-antenna
Mounting Wall (Included)
Ambient operating temperature -10 to 40 C (14 to 104 F)
Ambient operating humidity 5 to 95% noncondensing
Certifications CE, FCC, IC
Supported Data Rates
802.11a 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
802.11ac 6.5 Mbps to 866.7 Mbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80)
