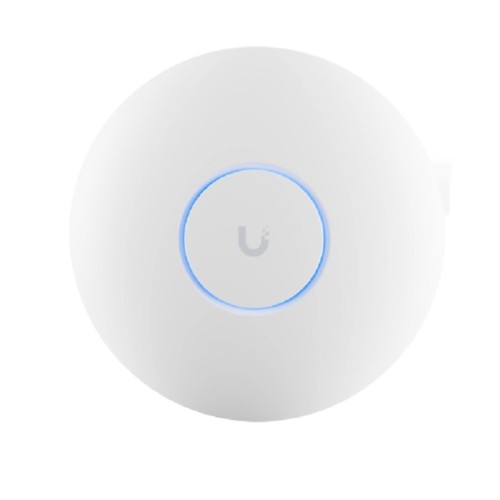

Ubiquiti U6-Pro Ceiling-mounted WiFi 6 Access Point
New
Ubiquiti U6-Pro Ceiling-mounted WiFi 6 Access Point
Product Code:
Availability:
Availability:
Ubiquiti U6-Pro
Out Of Stock
Out Of Stock
#1: WiFi 6
#2: 6 spatial streams
#3: 140 m (1,500 ft) coverage
#4: 350+ connected devices
#5: Powered using PoE
#6: GbE uplink
Mechanical
Dimensions 197 x 35 mm (7.8 x 1.4")
Enclosure material Polycarbonate
Mount material Stainless steel (SUS304)
Weatherproofing IP54
Hardware
Networking interface (1) GbE RJ45 port
Management interface Ethernet
Bluetooth
Power method PoE
Power supply UniFi PoE switch
PoE adapter (Not included)
Supported voltage range 44—57V DC
Max. power consumption 13W
Max. TX power
2.4 GHz 22 dBm
5 GHz 26 dBm
6 GHz -
MIMO
2.4 GHz 2 x 2 (UL MU-MIMO)
5 GHz 4 x 4 (DL/UL MU-MIMO)
6 GHz –
Max. data rate
2.4 GHz 573.5 Mbps (BW40)
5 GHz 4.8 Gbps (BW160)
6 GHz –
Antenna gain
2.4 GHz 4 dBi
5 GHz 6 dBi
6 GHz -
LEDs White/blue
Button Factory reset
Mounting Wall, ceiling (Included)
Ambient operating temperature -30 to 60 C (-22 to 140 F)
Ambient operating humidity 5 to 95% noncondensing
Certifications CE, FCC, IC
Software
WiFi standards 802.11a/b/g/n/ac/ax (WiFi 6)
Wireless security WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3)
BSSID 8 per radio
VLAN 802.1Q
Advanced QoS Per-user rate limiting
Guest traffic isolation Supported
Concurrent clients 350+
Zero wait DFS Yes
Supported Data Rates
802.11a 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b 1, 2, 5.5, 11 Mbps
802.11g 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n 6.5 Mbps to 600 Mbps (MCS0 - MCS31, HT 20/40)
802.11ac 6.5 Mbps to 3.4 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160)
802.11ax (WiFi 6) 7.3 Mbps to 4.8 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160)
Application Requirements
UniFi Network Version 6.1.56 and later
