Ubiquiti U7-Pro-Outdoor Access Point Call For Best Price in Dubai, UAE, Oman, Iran, Africa
Ubiquiti U7-Pro-Outdoor Access Point Call For Best Price in Dubai, UAE, Oman, Iran, Africa
Product Code:
Availability:
Availability:

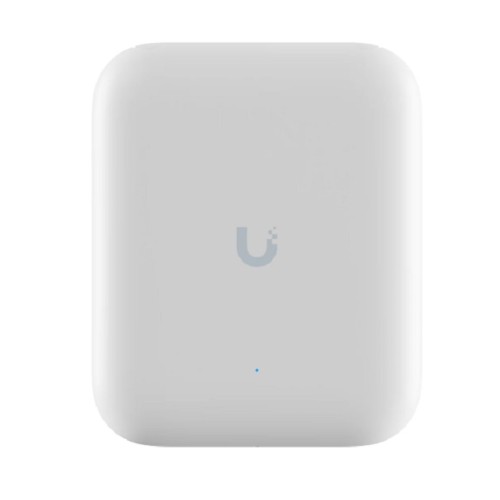

Ubiquiti U7-Pro-Outdoor
Out Of Stock
Out Of Stock
All-weather IP67 WiFi 7 AP with 6 spatial streams, extended-range AFC 6 GHz support, integrated directional super antenna, and articulation mounting bracket.
#1: WiFi 7 with 6 GHz support
#2: 6 spatial streams
#3: Long-range 6 GHz performance with AFC
#4: 465 m (5,000 ft) open space coverage with the integrated directional super antenna
#5: Software-switchable from internal directional to included external omni antennas
#6: 300+ connected devices
#7: Powered using PoE+
#8: 2.5 GbE uplink
#9: Versatile wall and pole mounting
#10: Weatherproof (outdoor exposed)
| Mechanical | |
|---|---|
| Dimensions | Without mount: 170 x 208 x 66.5 mm (6.7 x 8.2 x 2.6") With mount: 170 x 208 x 121.8 mm (6.7 x 8.2 x 4.8") |
| Weight | Device: 1.2 kg (2.6 lb) Mount: 130 g (0.3 lb) |
| Enclosure material | UV-stabilized polycarbonate, aluminum alloy |
| Mount material | UV-stabilized polycarbonate |
| Pole mount diameter | 25–63.5 mm (1–2.5") on pipe outer diameter |
| Wind survivability | 74.6 N at 200 km/h (16.8 lbf at 125 mph) |
| Weatherproofing | IPX6 IP67 with cable-gland door kit (Included) |
| Hardware | |
| Networking interface | (1) 1/2.5 GbE RJ45 port |
| Management interface | Ethernet |
| Power method | PoE+ |
| Power supply | UniFi PoE switch |
| Supported voltage range | 42.5—57V DC |
| Max. power consumption | 21W |
| Max. TX power 2.4 GHz 5 GHz 6 GHz | 23 dBm 26 dBm 26 dBm* *With 6 GHz Extended Range mode. Available in FCC/IC region only. |
| MIMO 2.4 GHz 5 GHz 6 GHz | 2 x 2 (DL/UL MU-MIMO) 2 x 2 (DL/UL MU-MIMO) 2 x 2 (DL/UL MU-MIMO) |
| Max. data rate 2.4 GHz 5 GHz 6 GHz | 688 Mbps (BW40) 4.3 Gbps (BW240) 5.7 Gbps (BW320) |
| Antenna gain 2.4 GHz 5 GHz 6 GHz | Directional internal: 8 dBi / External omni: 6 dBi Directional internal: 11 dBi / External omni: 8 dBi Directional internal: 10 dBi / External omni: – |
| Antenna beamwidth 2.4 GHz 5 GHz 6 GHz | 90° 90° 90° |
| Antennas | (1) Directional internal antenna (2) RP-SMA connectors for external antenna |
| LEDs | (1) Power: white/blue (4) Mesh signal: blue |
| Button | Factory reset |
| Mounting | Wall, ceiling, pole (Included) |
| Ambient operating temperature | -30 to 60° C (-22 to 140° F) |
| Ambient operating humidity | 5 to 95% noncondensing |
| Certifications | FCC, IC |
| Software | |
| WiFi standards | 802.11a/b/g/n/ac/ax/be (WiFi 6, WiFi 7) |
| Wireless security | WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK) |
| BSSID | 8 per radio |
| VLAN | 802.1Q |
| Advanced QoS | Per-user rate limiting |
| Guest traffic isolation | Supported |
| Concurrent clients | 300+ |
| Supported Data Rates | |
| 802.11a | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11b | 1, 2, 5.5, 11 Mbps |
| 802.11g | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11n | 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40) |
| 802.11ac | 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160) |
| 802.11ax (WiFi 6) | 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160) |
| 802.11be (WiFi 7) | 7.3 Mbps to 5.7 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240/320) |
| Application Requirements | |
| UniFi Network | Version 9.0.108 and later |
