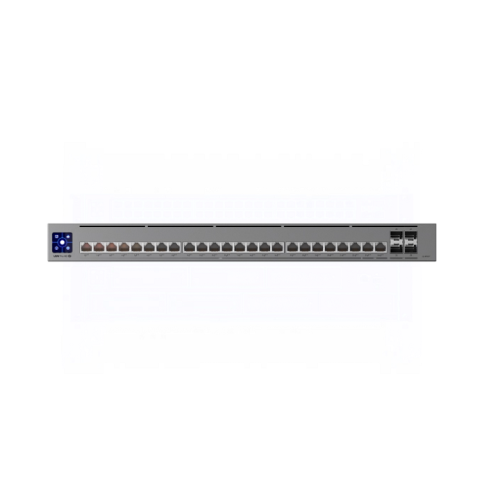

Ubiquiti USW-Pro-HD-24-PoE (600W) Pro HD 24 PoE Switch
Ubiquiti USW-Pro-HD-24-PoE (600W) Pro HD 24 PoE Switch
Product Code:
Availability:
Availability:
Ubiquiti USW-Pro-HD-24-PoE (600W)
Out Of Stock
Out Of Stock
Professional-grade, Layer 3 Etherlighting switch with (2) 10 GbE PoE++, (22) 2.5 GbE PoE++, and (4) 10G SFP+ ports.
#1: Etherlighting ports that illuminate to indicate port location, speed/link, and native VLAN/network
#2: (22) 2.5 GbE, (2) 10 GbE PoE++ ports
#3: (4) 10G SFP+ ports
#4: DC power backup ready
#5: 600W total PoE availability
| Mechanical | |
|---|---|
| Dimensions | 442.4 x 400 x 44 mm (17.4 x 15.7 x 1.7") |
| Weight | Without mounting brackets: 6.4 kg (14.1 lb) With mounting brackets: 6.5 kg (14.3 lb) |
| Enclosure material | SGCC steel |
| Hardware | |
| Management interface | Ethernet In-Band |
| Networking interface | (2) 10/5/2.5/1 GbE, 100 MbE RJ45 ports (22) 2.5/1 GbE, 100/10 MbE RJ45 ports (4) 10/1G SFP+ ports |
| PoE interface | (24) 60W PoE++ (Pair A 1, 2+; 3, 6-) (Pair B 4, 5+; 7, 8-) |
| Total non-blocking throughput | 115 Gbps |
| Switching capacity | 230 Gbps |
| Forwarding rate | 171.12 Mpps |
| Power method | (1) Universal input, 100—240V AC, 50/60 Hz (1) USP-RPS DC input |
| Power supply | AC/DC, internal, 660W |
| Supported voltage range | 100—240V AC |
| Max. power consumption | 56W (Excluding PoE output) |
| Total available PoE | 600W |
| Max. PoE wattage per port by PSE | PoE: 15.4W PoE+: 30W PoE++: 60W |
| Voltage range PoE mode | PoE: 44—57V PoE+: 50—57V |
| LCM display | (1) 1.3" touchscreen |
| Button | Factory reset |
| Ambient operating temperature | -5 to 40° C (23 to 104° F) |
| Ambient operating humidity | 10 to 90% noncondensing |
| Certifications | CE, FCC, IC |
| Switching Features | |
| Layer 2 features | IGMP snooping STP / RSTP with priorities and port-level disable Port isolation Storm control Voice VLAN Port mirroring LACP port aggregation Multicast / broadcast rate limiting MAC address blocking Flow control 802.1X control Jumbo frames Proprietary loop protection DHCP snooping / guarding Egress rate limit LLDP-MED Port restricted by MAC Device isolation with ACLs QoS Pro AV |
| Layer 3 features | DHCP for locally-managed networks DHCP relay Inter-VLAN routing between networks on same switch Static routing between local networks Network isolation with ACLs |
| Etherlighting™ | |
| Ethernet | Locating Speed/link Native VLAN/network |
| SFP+ | Locating Speed/link Native VLAN/network |
| LEDs | |
| System | Status |
| RPS | Status |
| Application Requirements | |
| UniFi Network | Version 8.6.9 and later |
