Ubiquiti USW-EnterpriseXG-24 EnterpriseXG 24 Switch
Ubiquiti USW-EnterpriseXG-24 EnterpriseXG 24 Switch
Product Code:
Availability:
Availability:

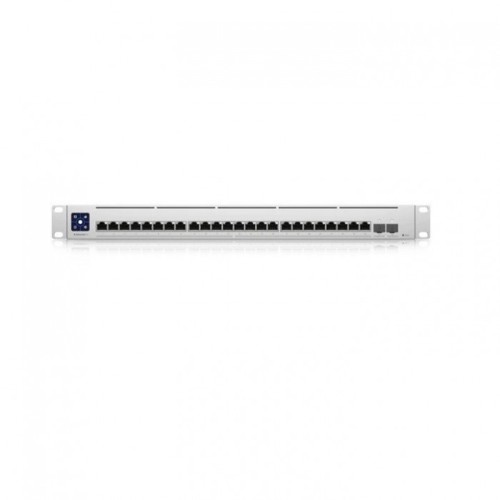

Ubiquiti USW-EnterpriseXG-24
Out Of Stock
Out Of Stock
A 24-port, Layer 3 switch capable of supporting high-capacity 10 GbE RJ45 and 25G SFP28 connections.
#1: (24) 10 GbE ports
#2: (2) 25G SFP28 ports
#3: DC power backup-ready
#4: Layer 3 switching
Mechanical
Dimensions 442 x 44 x 285 mm (17.4 x 1.7 x 11.2")
Weight Without mounting brackets: 4.47 kg (9.85 lb)
With mounting brackets: 4.57 kg (11.02 lb)
Enclosure material SGCC steel
Hardware
Networking interface (24) 100/1,000/2,500/5,000/10,000 Mbps RJ45 Ethernet
Management interface Ethernet In-Band
SFP28 interface (2) 25G SFP28 ports
Switching capacity 580 Gbps
Forwarding rate 431.52 Mpps
Max. power consumption 100W
Power method (1) Universal AC input, 100—240V AC, 2A Max., 50/60 Hz
(1) USP-RPS DC input, 11.5V DC, 8.7A
Power supply AC/DC, internal, 100W
Services SMB Layer 3 GbE switch
ESD/EMP protection Air: + 16kV, contact: + 12kV
LCM display (1) 1.3" LCM color touchscreen
Bootup animation: bootup in progress
Firmware upgrade icon: firmware upgrading
Button Factory reset
Operating temperature -5 to 40 degree C (23 to 104 degree F)
Operating humidity 10 to 95% noncondensing
Certifications CE, FCC, IC
