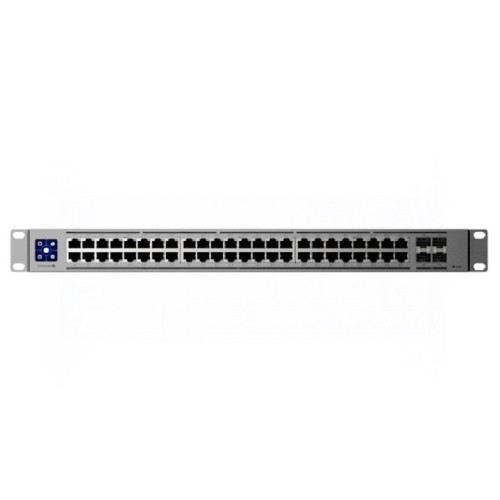

Ubiquiti USW-Enterprise-48-PoE (720W) Enterprise 48 PoE Switch
Ubiquiti USW-Enterprise-48-PoE (720W) Enterprise 48 PoE Switch
Product Code:
Availability:
Availability:
Ubiquiti USW-Enterprise-48-PoE
Out Of Stock
Out Of Stock
A 48-port, Layer 3 switch with 2.5 GbE PoE+ output.
#1: (48) 2.5 GbE PoE+ ports
#2: (4) 10G SFP+ ports
#3: 720W total PoE availability
#4: DC power backup-ready
#5: Layer 3 switching
Mechanical
Dimensions 442 x 400 x 44 mm (17.4 x 15.7 x 1.7")
Enclosure material SGCC steel
Hardware
Management interface Ethernet In-Band
Networking interface (48) 2.5 GbE RJ45 ports
(4) 1/10G SFP+ ports
PoE interface (48) PoE/PoE+ (Pins 1, 2+; 3, 6-)
Total non-blocking throughput 160 Gbps
Switching capacity 320 Gbps
Forwarding rate 238.095 Mpps
Power method (1) Universal input, 100—240V AC, 10A Max., 50/60 Hz
(1) USP-RPS DC input, 52V DC, 13.84A; 11.5V DC, 13A
Power supply AC/DC, internal, 100—240V, 10A Max.
Supported voltage range 100—240V AC
Max. power consumption 150W (Excluding PoE output)
Total available PoE 720W
Max. PoE wattage per port by PSE PoE+: 34.2W
Voltage range PoE mode PoE: 44—57V
PoE+: 50—57V
Services SMB Layer 3 PoE GbE Switch
ESD/EMP protection Air: + 16kV, contact: + 12kV
LCM display (1) 1.3" color touchscreen
Button Factory reset
Ambient operating temperature -5 to 40 C (23 to 104 F)
Ambient operating humidity 10 to 90% noncondensing
Certifications CE, FCC, IC
Switching Features
Layer 2 features IGMP snooping
STP / RSTP with priorities and port-level disable
Port isolation
Storm control
Voice VLAN
Port mirroring
LACP port aggregation
Multicast / broadcast rate limiting
MAC address blocking
Flow control
802.1X control
Jumbo frames
Proprietary loop protection
DHCP snooping / guarding
Egress rate limit
LLDP-MED
Port restricted by MAC
Device isolation with ACLs
Layer 3 features DHCP for locally-managed networks
DHCP relay
Inter-VLAN routing between networks on same switch
Static routing between local networks
Network isolation with ACLs
LEDs
System Status
Ethernet Link/activity
SFP+ Link/activity
Application Requirements
UniFi Network Version 6.2.26 and later
