Ubiquiti USW-Ultra (42W)
Out Of Stock
A compact, Layer 2, 8-port GbE PoE switch with versatile mounting options.
#1: (7) GbE PoE+ output ports
#2: (1) GbE PoE++ input port
#3:  42W PoE availability with PoE++ input
Mechanical
Dimensions 203 x 76 x 33 mm (8 x 3 x 1.3")

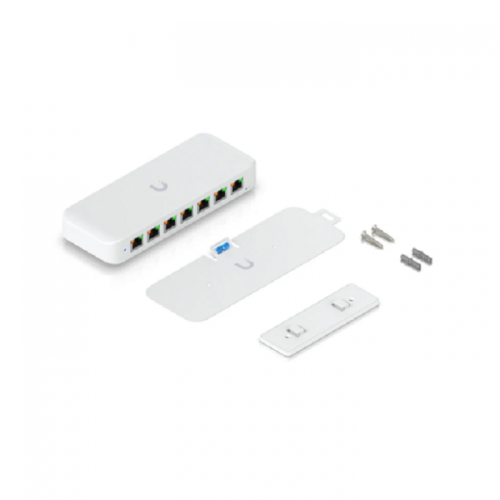

Wall mount: 45 g (1.6 oz)
Enclosure material Polycarbonate
Hardware
Management interface      Ethernet In-Band
Networking interface         (8) GbE RJ45 ports
PoE interface (7) PoE/PoE+ (Pins 1, 2+; 3, 6-)
Total non-blocking throughput         8 Gbps
Switching capacity 16 Gbps
Forwarding rate 11.904 Mpps
Power method (1) 54V, 3.9A power adapter (Not included)
(1) 54V, 1.1A power adapter (Not included)
PoE++ (Pins 1, 2+; 3, 6- and 4, 5+; 7, 8-)
Supported voltage range 44—57V DC
Max. power consumption 9W with PoE input (Excluding PoE output)
8W with AC adapter input (Excluding PoE output)
Total available PoE PoE++ input: 42W
PoE+ input: 16W
60W PoE adapter input: 42W
60W AC adapter input: 52W
210W AC adapter input: 202W*
At 45 C (113 F) operating temperature. Reduced to 161W (230V) or 121W (115V) at 60 C (140 F)
Max. PoE+ wattage per port by PSE         30W
Button Factory reset
Ambient operating temperature PoE++ input: -30 to 60 C (-22 to 140 F)
60W AC adapter input: -20 to 45 C (-4 to 113 F)
210W AC adapter input: -20 to 60 C (-4 to 140 F)
Ambient operating humidity 10 to 90% noncondensing
Certifications CE, FCC, IC
Switching Features
Layer 2 features         STP / RSTP with priorities and port-level disable
Port isolation
Storm control
Port mirroring
Multicast / broadcast rate limiting
Flow control
Jumbo frames
Egress rate limit
Layer 3 features         –
LEDs
System Status
Ethernet PoE
Link/activity
Application Requirements
UniFi Network Version 8.0.28 and later
