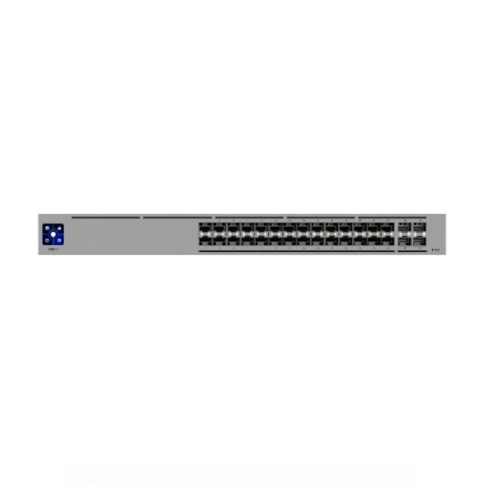

Ubiquiti USW-Pro-Aggregation Hi-Capacity Aggregation Switch
Ubiquiti USW-Pro-Aggregation Hi-Capacity Aggregation Switch
Product Code:
Availability:
Availability:
Ubiquiti USW-Pro-Aggregation
Out Of Stock
Out Of Stock
32-port, Layer 3 switch made for high-capacity 10G SFP+ and 25G SFP28 connections.
#1: (28) 10G SFP+ ports
#2: (4) 25G SFP28 ports
#3: DC power backup-ready
#4: Layer 3 switching
Mechanical
Dimensions 442 x 325 x 44 mm (17.4 x 12.8 x 1.7")
Enclosure material SGCC steel
Hardware
Management interface Ethernet In-Band
Networking interface (28) 1/10G SFP+ ports
(4) 1/10/25G SFP28 ports
Don't support mixed speed at 25 Gbps mode. Once one of the ports is configured at 25 Gbps mode, the others will be limited at 25 Gbps too. Supports mixed speed when all ports are at 1 or 10 Gbps.
Total non-blocking throughput 380 Gbps
Switching capacity 760 Gbps
Forwarding rate 565.44 Mpps
Power method (1) Universal input, 100—240V AC, 2A Max., 50/60 Hz
(1) USP RPS DC input, 11.5V DC, 8.7A
Power supply AC/DC, internal, 100W
Supported voltage range 100—240V AC
Max. power consumption 100W
ESD/EMP protection Air: + 16kV, contact: + 12kV
Services SMB Layer 3 10/25 G Fiber switch
LCM display (1) 1.3" LCM color touchscreen
Ambient operating temperature -5 to 40 C (23 to 104 F)
Ambient operating humidity 10 to 90% noncondensing
Certifications CE, FCC, IC
Switching Features
Layer 2 features IGMP snooping
STP / RSTP with priorities and port-level disable
Port isolation
Storm control
Voice VLAN
Port mirroring
LACP port aggregation
Multicast / broadcast rate limiting
MAC address blocking
Flow control
802.1X control
Jumbo frames
Proprietary loop protection
DHCP snooping / guarding
Egress rate limit
LLDP-MED
Port restricted by MAC
Device isolation with ACLs
Layer 3 features DHCP for locally-managed networks
DHCP relay
Inter-VLAN routing between networks on same switch
Static routing between local networks
LEDs
System Status
SFP28/SFP+ Link/activity
Application Requirements
UniFi Network Version 6.1.25 and later
