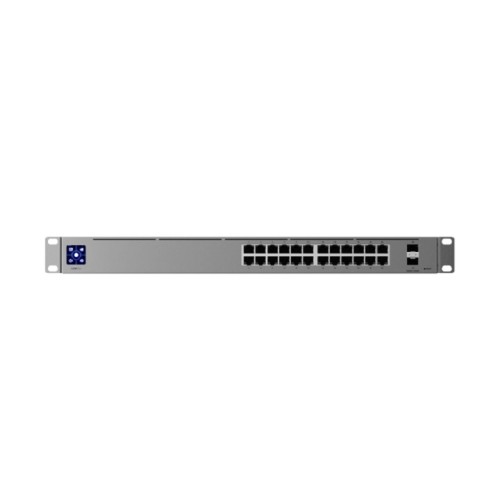

Ubiquiti USW-Pro-24 Pro 24 Switch
Ubiquiti USW-Pro-24 Pro 24 Switch
Product Code:
Availability:
Availability:
Ubiquiti USW-Pro-24
Out Of Stock
Out Of Stock
A 24-port, Layer 3 switch supporting 10G SFP+ connections with fanless cooling.
#1: (24) GbE ports
#2: (2) 10G SFP+ ports
#3: DC power backup-ready
#4: Layer 3 switching
#5:Silent cooling
Mechanical
Dimensions 442 x 285 x 44 mm (17.4 x 11.2 x 1.7")
Enclosure material SGCC steel
Hardware
Management interface Ethernet In-Band
Networking interface (24) GbE RJ45 ports
(2) 1/10G SFP+ ports
Total non-blocking throughput 44 Gbps
Switching capacity 88 Gbps
Forwarding rate 65.472 Mpps
Power method (1) Universal input, 100—240V AC, 50/60 Hz
(1) USP-RPS DC input 11.5V DC, 2.61A
Power supply AC/DC, internal, 36W
Supported voltage range 100—240V AC
Max. power consumption 30W
ESD/EMP protection Air: + 16kV, contact: + 12kV
LCM display (1) 1.3" touchscreen
Button Factory reset
Shock and vibration ETSI300-019-1.4 Standard
Ambient operating temperature -5 to 45 C (23 to 113 F)
Ambient operating humidity 10 to 90% noncondensing
Certifications CE, FCC, IC
Switching Features
Layer 2 features IGMP snooping
STP / RSTP with priorities and port-level disable
Port isolation
Storm control
Voice VLAN
Port mirroring
LACP port aggregation
Multicast / broadcast rate limiting
MAC address blocking
Flow control
802.1X control
Jumbo frames
Proprietary loop protection
DHCP snooping / guarding
Egress rate limit
LLDP-MED
Port restricted by MAC
Device isolation with ACLs
Layer 3 features DHCP for locally-managed networks
DHCP relay
Inter-VLAN routing between networks on same switch
Static routing between local networks
Network isolation with ACLs
LEDs
System Status
Ethernet Speed/link/activity
SFP+ Speed/link/activity
RPS Status
Application Requirements
UniFi Network Version 5.12.11 and later
