Ubiquiti USW-Mission-Critical UniFi Switch Mission Critical Call For Best Price in Dubai, UAE, Oman, Iran, Africa
Ubiquiti USW-Mission-Critical UniFi Switch Mission Critical Call For Best Price in Dubai, UAE, Oman, Iran, Africa
Product Code:
Availability:
Availability:
Ubiquiti USW-Mission-Critical
Out Of Stock
Out Of Stock
#1: A switch with an integrated 368Wh lithium-ion battery capable of providing uninterruptible PoE to 8 devices.
#2: (4)GbE PoE+,(4)GbE PoE++ ports
#3: (1)GbE port
#4: (2)230V AC outputs; 120W total PoE available
#5: Battery backup power system
#6: Internal battery 368Wh
Mechanical
Dimensions 442 x 480 x 44 mm (17.4 x 18.9 x 1.7")
Weight Without mount: 9 kg (19.9 lb)
With mount: 9.2 kg (20.3 lb)
Enclosure material SGCC steel
Mount material SGCC steel
Supported rack depth 700 to 1000 mm (27.6 to 39.4")
Hardware
Management interface Ethernet In-Band

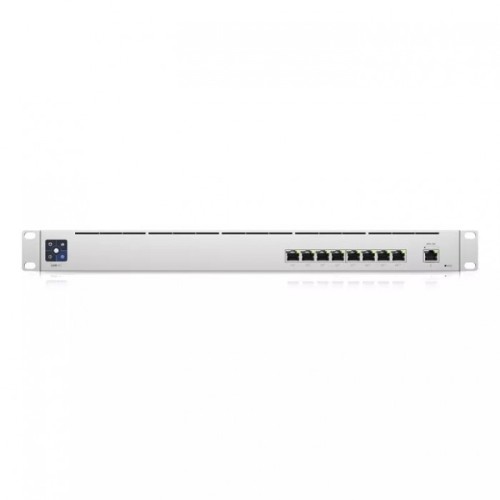

Networking interface (9) GbE RJ45 ports
PoE interface (4) PoE/PoE+ (Pins 1, 2+; 3, 6-)
(4) 60W PoE++ (Pair A 1, 2+; 3, 6-)(Pair B 4, 5+; 7, 8-)
Total non-blocking throughput 9 Gbps
Switching capacity 18 Gbps
Forwarding rate 26.78 Mpps
Power method (1) Universal input, 100—240V AC, 4.4A Max., 50/60 Hz
(1) External battery DC input 48V DC, 6A
(1) Internal Lithium-Ion battery, 368Wh
Power supply Universal AC input: AC/DC, internal, 240W
External battery port: DC, external, 240W
Max. power consumption 240W (Including PoE output)
50W (Excluding PoE output)
Total available PoE 120W

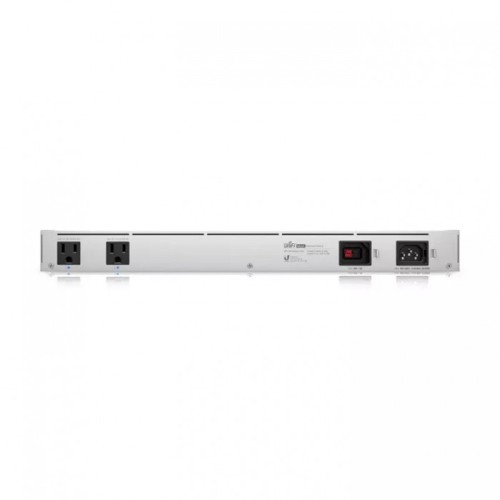

Power output US: (2) Power control outlets, 110V AC, 0.72A Max., 60 Hz
EU: (2) Power control outlets, 230V AC, 0.35A Max., 50 Hz
Power output budget 80W
Max. PoE wattage per port by PSE PoE+: 30W
PoE++: 60W
Voltage range PoE mode PoE: 44—57V
PoE+/PoE++: 50—57V
ESD/EMP protection Air/contact:+24kV
LCM display (1) 1.3" touchscreen
Ambient operating temperature -5 to 40 C (23 to 104 F)
Ambient operating humidity 5 to 95% noncondensing
Certifications CE, FCC, IC
Switching Features
Layer 2 features IGMP snooping
STP / RSTP with priorities and port-level disable
Port isolation
Storm control
Voice VLAN
Port mirroring
LACP port aggregation
Multicast / broadcast rate limiting
MAC address blocking
Flow control
802.1X control
Jumbo frames
Proprietary loop protection
DHCP snooping / guarding
Egress rate limit
LLDP-MED
Port restricted by MAC
Device isolation with ACLs
Layer 3 features
LEDs
Ethernet Green: 1 Gbps
Amber: 10/100 Mbps
PoE Amber: PoE/PoE+/PoE++
Power output Blue: active
