Ubiquiti UMR Mobile Router Nano SIM Card Slot
Ubiquiti UMR Mobile Router Nano SIM Card Slot
Product Code:
Availability:
Availability:
Ubiquiti UMR
Out Of Stock
Out Of Stock

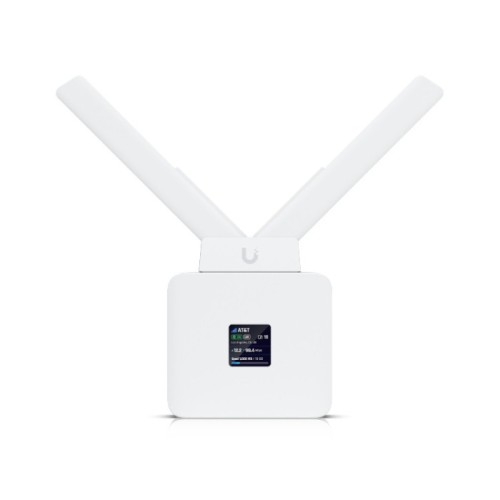

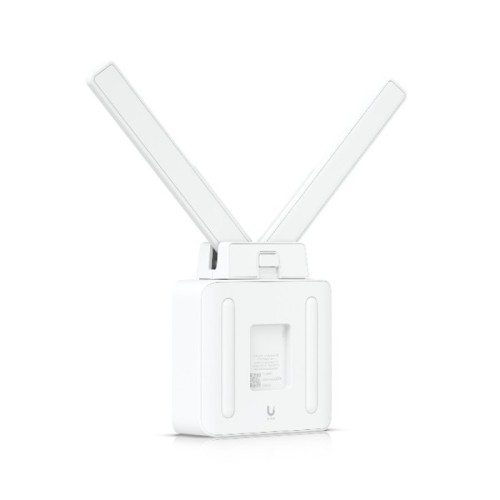

Managed mobile WiFi router that brings plug-and-play connectivity to any environment. Use the pre-installed AT&T nano-SIM with three data plan options for LTE data, or bring your own AT&T nano-SIM.
#1: LTE category 4 mobile WiFi router
#2: Pre-installed AT&T nano-SIM*
#3: VPN client routing
#4: Automatic failover between LTE and wired WAN
#5: (2) GbE ports with (1) PoE output
#6: Powered using PoE, USB Type-C, or 4-pin DC power socket
#7: Integrated GPS
#8: Optional Mobility Cloud subscription
Dimensions 220.6 x 89.8 x 28.8 mm (8.7 x 3.5 x 1.1")
Weight Without mount: 257 g (9.1 oz), With mount: 303 g (10.7 oz)
Enclosure material Polycarbonate
Mount material Wall mount: polycarbonate
DIN rail mount: steel
Hardware
Processor 74 Kc MIPS processor at 775 MHz
Memory 128 MB DDR2

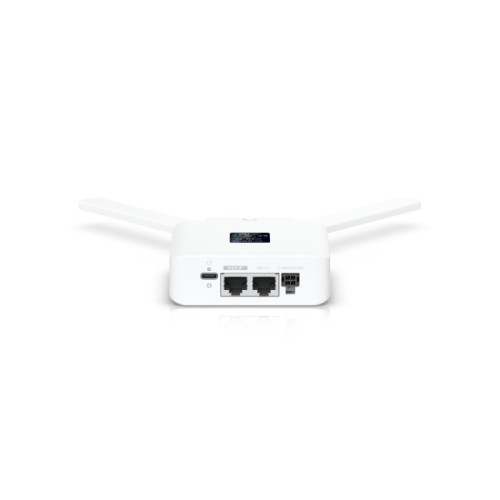

Networking interface (2) GbE RJ45 ports
LTE Category 4 radio
WiFi 4
Management interface Ethernet
WiFi
PoE interface (1) PoE input
(1) PoE output* (Max. 10W)
SIM Pre-installed AT&T data-only nano SIM
LTE bands B2, B4, B5, B12, B14, B66
Operator AT&T network
LTE throughput speed* Download 150 Mbps / Upload 50 Mbps
WiFi standards 802.11 b/g/n, WiFi 2.4G, 20/40 MHz
GPS Yes
Antennas (1) External LTE antenna (main + aux) with TS9 male connectors
(1) Internal WiFi 2.4 GHz antenna
(1) Internal GPS antenna
Power supply UniFi PoE switch (48—54V DC, 0.625A)
USB Type-C (5V DC, 3A)
4-pin* ATX DC power socket (9V DC, 1A)
Max. power consumption 9W
LCM display 1.3" screen
Button Factory reset
Mounting DIN rail/wall (Included)
Operating temperature -20 to 45° C (-4 to 113° F)
Operating humidity 5 to 95% noncondensing
Certifications FCC, IC, PTCRB, AT&T
Supported WiFi Data Rates
802.11b 1, 2, 5.5, 11 Mbps
802.11g 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n (WiFi 4) 6.5 Mbps to 150 Mbps (MCS0 - MCS7, HT 20/40)
